Steady and Reliable Palletized Storage Automated Racking System
For customers:
Offering automatic and logistics solutions.
Service content:
Including logistics system project design and planning; exploitation and design of logistics software; electric-control system design and implementation; logistics equipment research and development, design and reformation; project management and after-sales service.

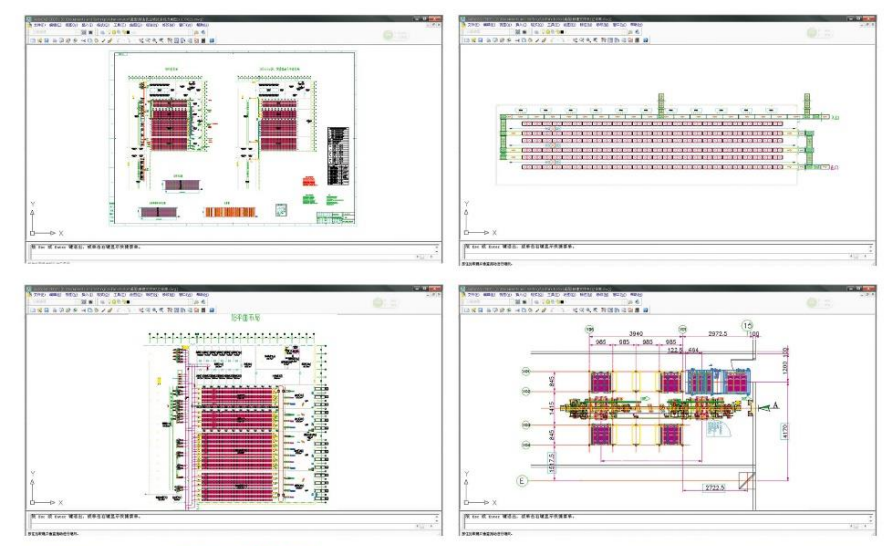

Storage System Design:
Calculate and manufacture storage systems from the most basic to the most sophisticated and advanced solution. Manage your warehouse on an automated storage solution and optimize the floor space, the picking processes.

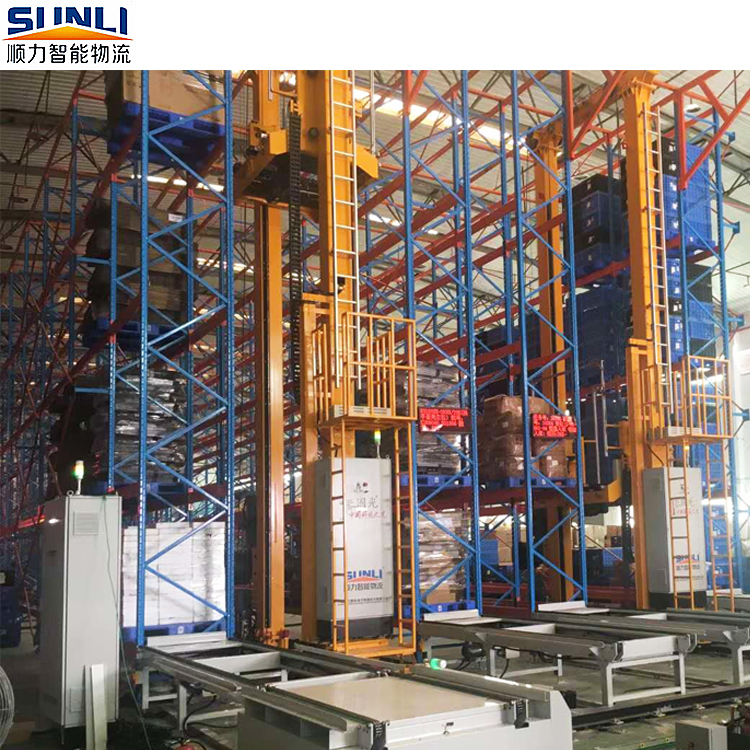

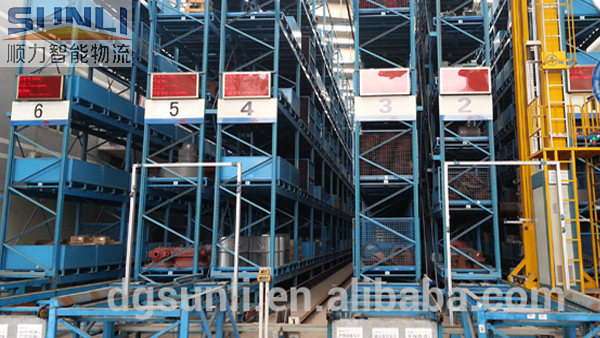

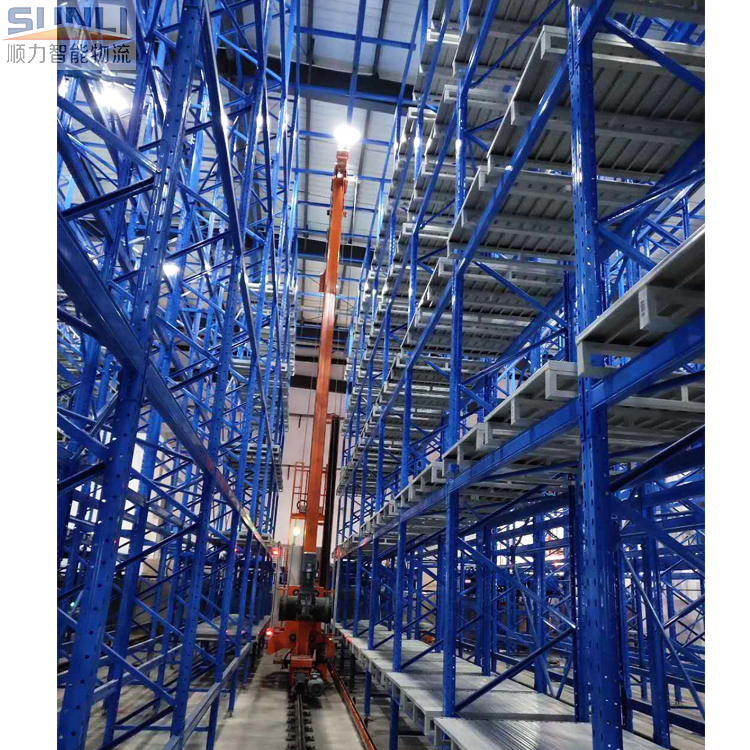

Automatic Storage Retrieval System for palletized goods stored in the high and narrow aisles. The loading units are handled by radio shuttle cart or by automated stacker cranes. These storage solutions can be designed as single or double deep structures, and also as open face solutions for the storage of a single pallet per level and bay.
| Mode |
Loading Capacity |
Height |
Speed |
Remarks |
| DPL-0.1T |
100KG |
5~30m |
160m/min |
Customized accepted by loading/pallet size |
| DPL-0.5T |
500KG |
5~30m |
160m/min |
| DPL-1T |
1000KG |
5~30m |
160m/min |
| DPL-1.5T |
1500KG |
5~30m |
120m/min |
| DPL-3T |
3000KG |
5~30m |
100m/min |

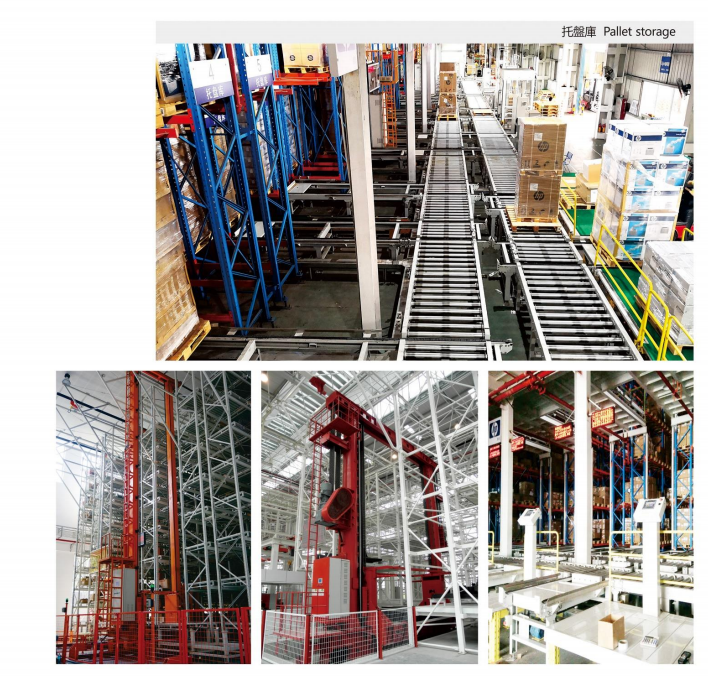

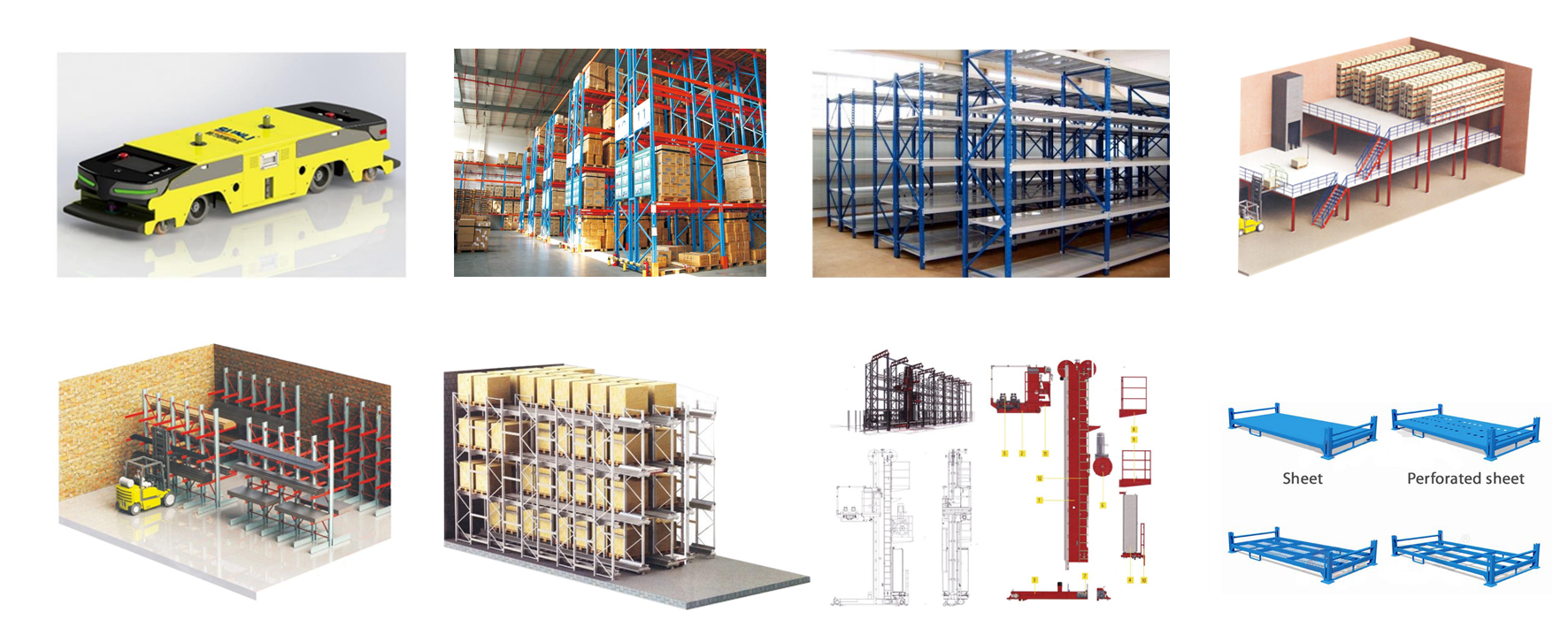

Pallet racking and multi-layer shelf racking are involved during Automatic Storage Retrieval System.

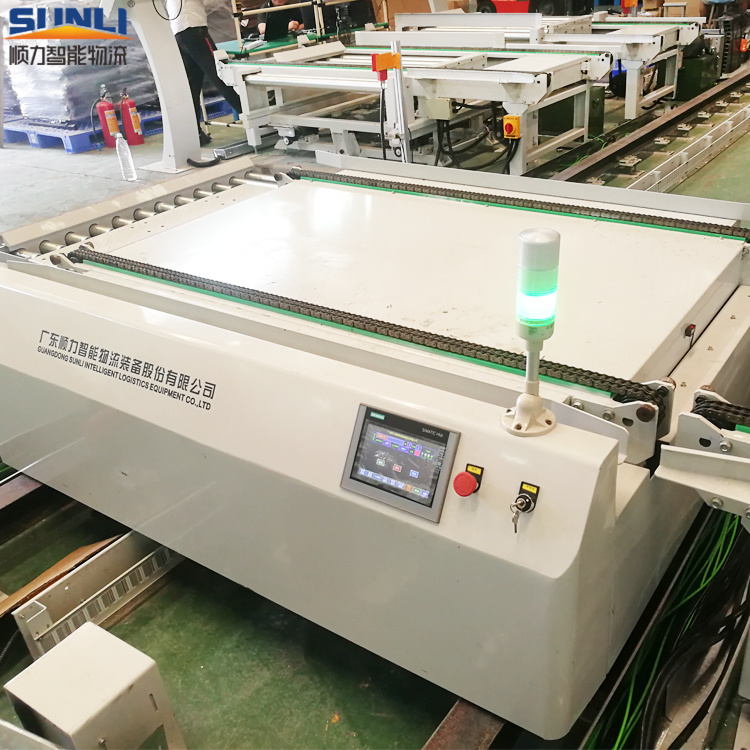

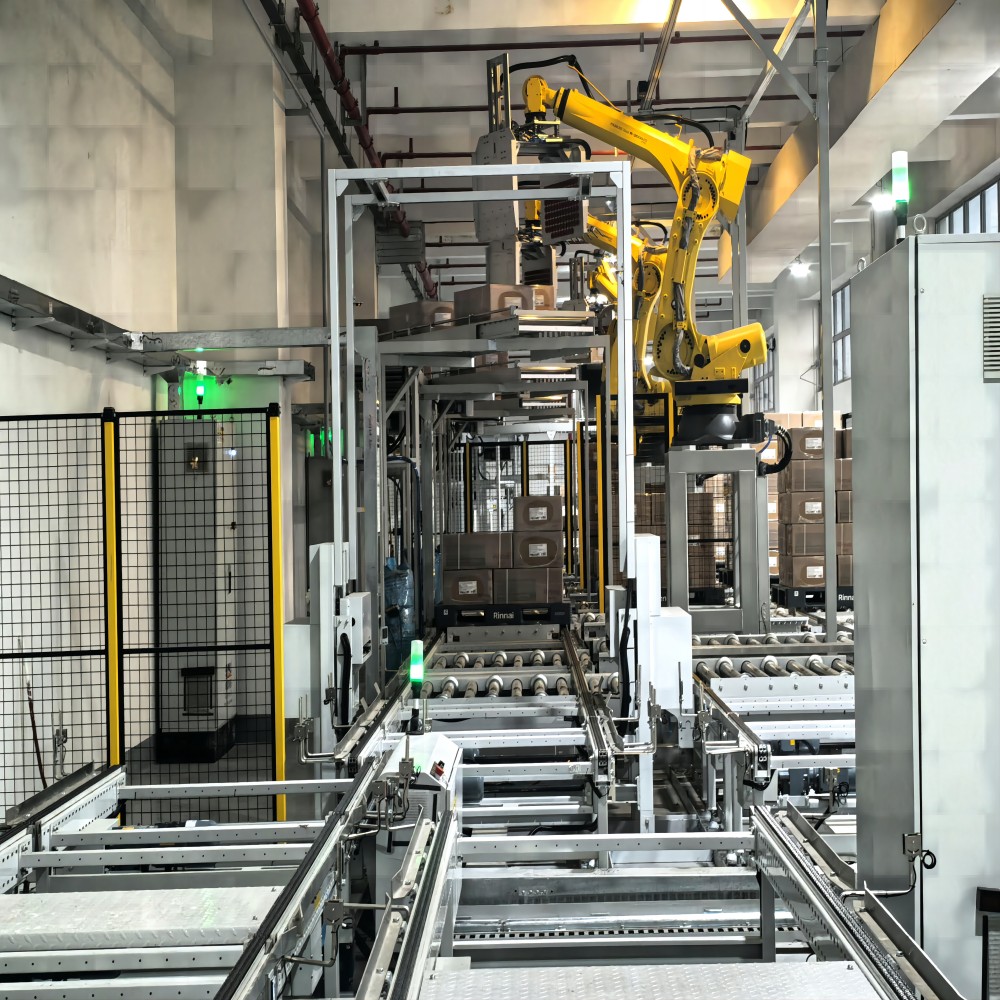

Conveying system is usually equipped in the front or back of warehouse for conveying goods from rack to despatch, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.
Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller can operate all conveyors offline, doing conveying of goods automatically.
Hardwares of WMS System:
Star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.
Softwares of WMS System:
• Operating system: WINDOW 2000X SEVER
• Data-base: MS SQL SEVER 2000X
• Warehouse management software: WMS
• Equipment controlling software: ECS
• Bar code management software: RFS
Are you a factory or trading company?
We have our own factory for manufacturing rack systems.
What is the term of payment?
We accept standard terms: 1) T/T payment. 2) L/C.
What is the raw material of your products?
As a general standard, the raw material of steel code is Q235B.
Which port will be used as the loading port?
Standard loading ports are Shenzhen and Guangzhou port.
What are the delivery times?
Delivery times depend on the specific order quantity and racking structural designs.
Are product samples available?
Yes, short sections of samples can be provided free of charge, with international courier costs to be borne by the client.
